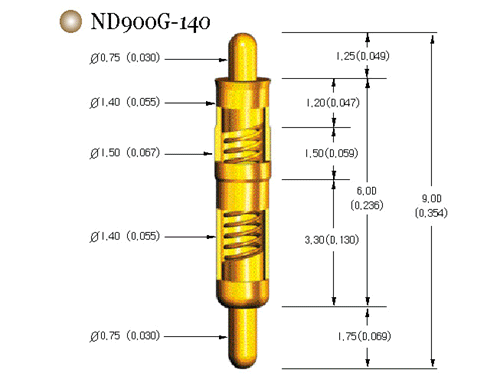

| Double Ended
Probe Specification |
|
| |
| ＝ ELECTRICAL (Static Conditions) |
＝ MATERIAL and FINISHES |
|
|
| |
Plunger :Heat-treated Berllium copper, |
| |
| |
Gold plated over nickel |
| |
(Optional Rhodium plated
over nickel) |
|
| |
|
| |
Barrel : Brass or Phosphor Bronze |
| |
| |
Gold plated(ID, and OD) over nickel |
|
| |
|
| |
Spring : Music wire or Stainless wire |
|
| |
|
|
|
|
|
SPRING FORCE
|
Preload
|
2/3 Travel
|
Full Travel
|
|
|
|
|
|
grams (± 20%)
|
|
3(9)
|
8(18)
|
|
|
|
|
|
| |
| |
|
|
|
|
