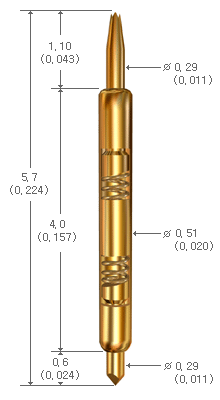

| Double Ended Probe
Specification |
|
| |
| ＝ ELECTRICAL (Static Conditions) |
|
|
| |
| ＝ MATERIAL and FINISHES |
| |
Plunger :Heat-treated Berllium copper, |
| |
| |
Gold plated over
nickel |
| |
(Optional Rhodium
plated over nickel) |
|
| |
|
| |
Barrel : Brass or Phosphor Bronze |
| |
| |
Gold plated(ID, and OD) over
nickel |
|
| |
|
| |
Spring : Music wire or Stainless wire
|
|
| |
| |
| |
| |
|
|
|
|
|
|
SPRING FORCE
|
Preload
|
2/3 Travel
|
Full Travel
|
|
|
|
|
|
grams (± 20%)
|
10
|
35
|
55
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
