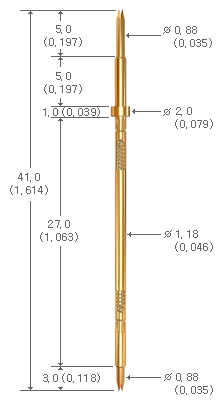

ND118G-410
series |
4.75(0.187)
Test Center
|
|
|
| |
|
|
| |
|
| |
| Double Ended Probe
Specification |
|
| |
| ＝ ELECTRICAL (Static Conditions) |
|
|
| |
| ＝ MATERIAL and FINISHES |
| |
Plunger :Heat-treated Berllium copper, |
| |
| |
Gold plated over
nickel |
| |
(Optional Rhodium
plated over nickel) |
|
| |
|
| |
Barrel : Brass or Phosphor Bronze |
| |
| |
Gold plated(ID, and OD) over
nickel |
|
| |
|
| |
Spring : Music wire or Stainless wire
|
|
| |
| |
| |
| |
|
|
|
|
|
|
SPRING FORCE
|
Preload
|
2/3 Travel
|
Full Travel
|
|
|
|
|
|
grams (± 20%)
|
15
|
40(3.2st)
|
60(5.0st)
|
|
|
|
|
7
|
36(2.5st)
|
43(3.0st)
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
