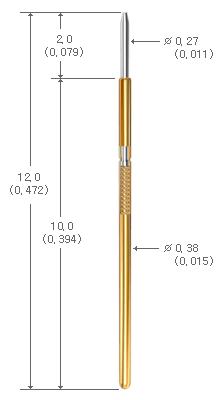

| Spring
contact probe |
|
|
| Double
ended probe |
|
|
| |
| |
|
| |
N38
series |
0.8(0.031)
Test Center
|
|
|
| |
|
|
|
|
|
| |
| Spring Contact
Probe Specification |
|
| |
| ＝ ELECTRICAL (Static Conditions) |
| |
Current ratung: 1 amp |
| |
Continuity resistance: 50 mз |
|
| |
| ＝ MATERIAL and FINISHES |
| |
Plunger : SK |
| |
| |
Rhodium plated over nickel |
|
| |
|
| |
Barrel : Brass |
| |
| |
Gold plated(ID, and OD) over
nickel |
|
| |
|
| |
Spring : Music wire or Stainless wire |
| |
|
|
| |
| |
| |
| |
|
|
|
|
|
|
SPRING FORCE
|
Preload
|
2/3 Travel
|
Full Travel
|
|
|
|
|
|
grams (‐ 20%)
|
10
|
30
|
45
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
 |

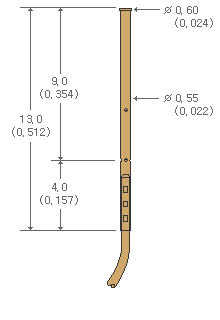

| Receptacles Specification |
|
| |
| ＝ Recommended diameter of drill : 0.57 (0.022) |
| |
| ＝ Material & plated finishes |
| |
Receptacle : Brass |
| |
| |
Gold plated(ID,and OD) over
nickel |
|
|
|
| |
| |
| |
|
|
| |
| |
|
|
|
|
|
