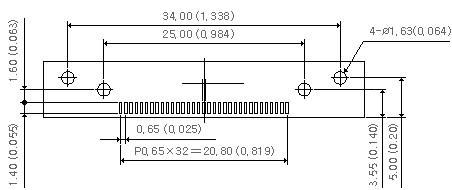

HTS-815-66SM |
0.65(0.026) PITCH 66PIN |
|
|
| |
|
| |
|
|
|
|
| |
| ＝ Specification |
| |
-Current Rating : 2A |
| |
-Dielectric Withstanding Voltage
: 100 V r.m.s |
| |
-Insulation Resistance : 1,000mз
Min |
| |
-Contact Temperture : -55”
to +125” |
|
| |
| ＝ MATERIAL |
| |
-Contacts : Beryllium Copper |
| |
-Insulator :P.E.S |
| |
-Finish : Gold plated over
nickel |
|
|
| |
|
| |
|
| |
|
|
|
