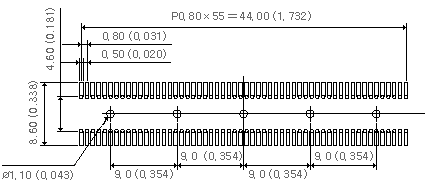

HT-100-112S |
0.8(0.032) PITCH 112PIN connector |
|
|
| |
|
| |
|
|
|
|
| |
| ＝ Mechanical |
| |
- Housing : Liquid crystal
polymer, UL 95 V-0 |
| |
- Color : Black |
| |
- Temperature range : -55”
to +130” |
| |
- Contact : Beryllium copper
|
| |
- Plate : Bronze |
| |
- Pin : Aluminum |
|
| |
| ＝ Plating |
| |
-Contact Finish : Gold plated
over nickel |
|
|
| |
| ＝ Electrical Performance |
| |
- Insulation resistance : 50,000
mз min initial |
| |
- Withstanding voltage : 8000 V
ac |
| |
- Current rating 1 amp (30” Temperature
rise) |
| |
- Contact resistance : 20 mз max
initial |
| |
- 25 mз max after environmental
test |
|
|
| |
|
| |
|
|
|
|
|
| |
|
