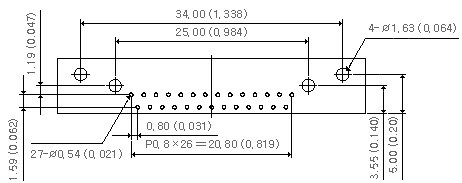

HTS-815-54SM |
0.80(0.032) PITCH 54PIN |
|
|
| |
|
| |
|
|
|
|
| |
| ＝ Specification |
| |
-Current Rating : 2A |
| |
-Dielectric Withstanding
Voltage : 100 V r.m.s |
| |
-Insulation Resistance
: 1,000mз Min |
| |
-Contact Temperture
: -55” to +125” |
|
| |
| ＝ MATERIAL |
| |
-Contacts : Beryllium
Copper |
| |
-Insulator :P.E.S |
| |
-Finish : Gold plated
over nickel |
|
|
| |
|
| |
|
| |
|
| |
|
|
|
