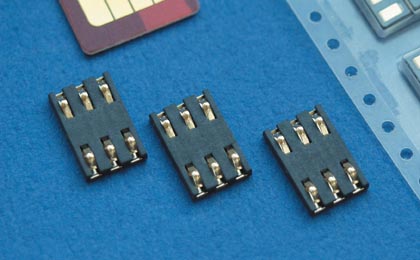

SIMB-150-6S

Specification 　 ■ Construction 　 - Insulator : High temp, 　 thermoplastic UL 94V-0 rated 　 - Contact : Copper alloy 　 - Contact finish : Gold plated over nickel 　 - PC Tail plating : Tin lead(2 m min) Sn / Pb 　 　 　 ■ Mechanical data 　 - Mechanical life : 50,000 cycles min 　 - Durability of inlay : 5,000 cycles min 　 - Contact force : 0.25N min / 0.5 N max 　 ■ Electrical data 　 - Insulation resistance : 1,000 mΩ min 　 - Contact resistance max : 100 mΩ min 　 - Switching current : 10 ㎂ min /1 A max 　 - Dielectric strength : 500 Vrms min 　 ■ Environmental data 　 - Operating temperature : -40 ℃ to +85℃ 　 - Soldering temperature : Temperature/time 　 profile acc. to CECC00802 para. 6.1, 　 Fig. 3 with peak temperature 250℃ 　 - Salt mist : IEC512 text number 11f(96 hours) 　 - Damp heat : IEC 512 test number 11c 　 (10 days)
