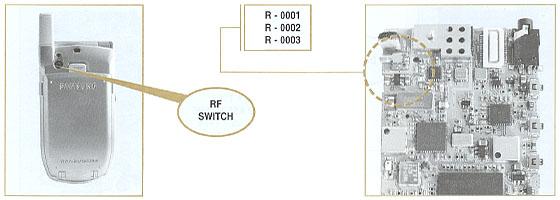

> RF Switches |
|
 |
| |
 |
|
|
|
|
|
|
| ¡¡ |
[ MATERIAL ] |
|
|
| |
| HOUSING(INSULATOR) |
HEAT RESISTANCE REGIN(UL94V-0) |
| COLOR |
BLACK |
| CONTACT TERMINAL |
BERYLLIUM COPPER |
| CONTACT PLATED |
GOLD 0.15§ PLATED OVER NIKEL
2§ MIN SOLDER |
| SHELL |
PHOSPHOR BRONZE |
|
| ¡¡ |
[ MECHANICAL
DATA ] |
|
|
| |
| POWER CONTACT PRESSURE |
50g ± 5g |
| FRICTION CONTACT |
10,000 OPERATING |
|
| ¡¡ |
[ ELECTRICAL
DATA ] |
|
|
| |
| INSULATION RESISTANCE |
1000 §Û MIN |
| CONTACT RESISTANCE |
50 §Û MAX |
| CURRENT RATE |
SINGLE 1A POWER
3A CONTINUOUS |
| WITHSTANDING VOLTAGE |
500VAC. rms 60Hz |
| OPERATING TEMPERATURE |
-30¡É TO 120 ¡É |
|
|
|
|
|
|
|
|
|
