| CTS-1137MP |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 12V 50mA
2.Circuit : 1C-1P
3.Travel : 0.2mm±0.1
4.Operating Force : 100,130,160,250gf
5.Contact Resistance : 100m §ÙMax
6.Operating Life :80,000 Cycles
| PART |
MATERIAL |
| TERMINAL |
BRASS |
| CASE |
NYLON66, NYLON 46 |
| CONTACT |
PHOSPHOR-BRONZE |
| DUST COVER |
POLY IMIDE |
| COVER |
STAINLESS-STEEL |
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢º With 6.2X6.4mm outline size and height of 1.80mm, these surface-mounting type switches are ideal for high-density mounting.
¢º dust proof construction.
¢º Sharp click feeling.
¢º Available for tape and reel package.
|
|
| ¢º For use of operating electronic equipment such as audio,home electronics, VCRs,radio Communication and electronics, etc. |
|
|
|

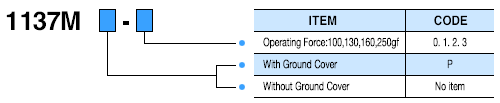

| ¡¡Order
Code Explanation |
 |
|
|
|
|
|
|
