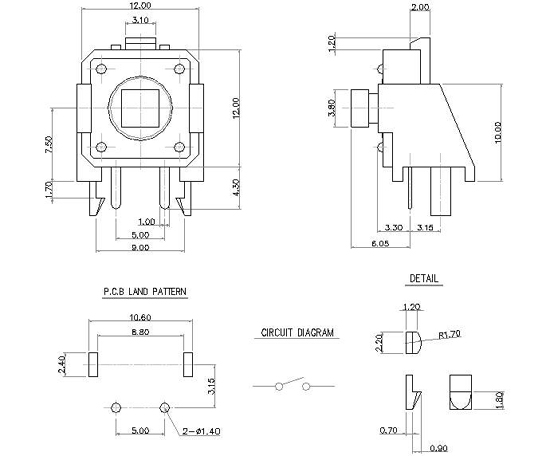

| CTS-1212BS |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 12V 50mA
2.Circuit : 1C-1P
3.Travel : 0.30±0.15mm
4.Operating Force : 130,160,250±50gf
5.Contact Resistance : 100m §ÙMax
6.Operating Life :80,000 Cycles
| PART |
MATERIAL |
| TERMINAL |
BRASS |
| CASE |
P.B.T |
| CONTACT |
PHOSPHOR-BRONZE |
| COVER |
METAL, FILM |
| STEM |
P.B.T |
| BRACKET |
P.B.T |
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢º Available sharp click feel with positive tactile feedback Due to small movement distance(Travel)
¢º User experience distinct sensation when the switch "click" into place
¢º Available using with cap on the case
|
|
| ¢º Instrument,Home
appliance,TV set, Etc |
|
|
|
|
|
|
|
|
|
