| ¢Æ Main > Products > Tact Switches > SMD Type Switches > 1112E |
|
 |
| |
|
|
|

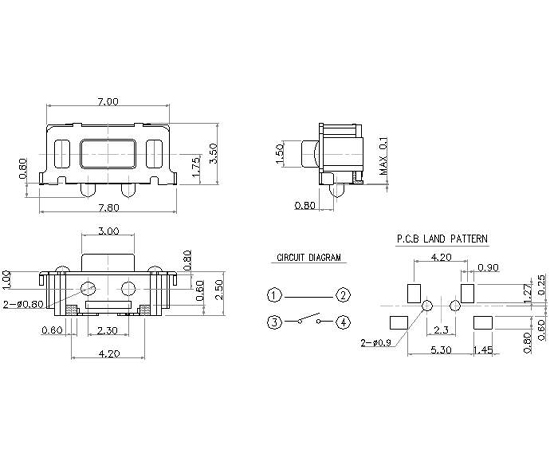

| [1112E] |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 12V 50mA
2.Circuit : 1C-1P
3.Travel : 0.25mm±0.1
4.Operating Force : 130,160g,250gf
5.Contact Resistance : 100m §ÙMax
6.Operating Life :50,000 Cycles
| PART |
MATERIAL |
| TERMINAL |
BRASS |
| CASE |
NYLON 46 |
| CONTACT |
STAINLESS STEEL |
| STEM |
NYLON 46 |
| COVER |
STAINLESS STEEL |
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢ºWith 2.5x7mm outline size,this surface mounting type tact switch is ideal for high density mounting.
¢ºThis is a horizontal type hich operates at a horizontal angle to the P.C.B
¢ºAvailable for tape and reel package
|
|
| For use operating all type of portable electronic equipment, in particular compact versions which require high density mounting such as cellular phones and radio communication, etc. |
|
|
|
|
|
|
|
|
|
