| CPS-2216F |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 30V 0.1A
2.Circuit : 2C-2P / 2C-1P(CASE COLOR:BLUE)
3.Timing : Shorting or Non-Shorting
4.Travel : Lock-Stroke : 1.0mm
¡¡¡¡¡¡¡¡¡¡Full-Stroke : 1.9mm
5.Contact Resistance : 100m §ÙMax
6.Operating Life : 50,000 Cycles
| PART |
MATERIAL |
| TERMINAL |
BRASS |
| CASE |
NYLON 66 |
| PUSH |
ACETAL |
| PUSH PLATE |
PHOSPHOR BRONZE |
| COVER |
ACETAL |
| SPRING |
STAINLESS STEEL |
| CAMSTICK |
STAINLESS STEEL |
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢ºVertical mounting on P.C.Board.
¢º1.0mm travel
¢ºTiming is shorting and non shorting
|
|
| ¢ºAudio equipment in general |
|
|
|

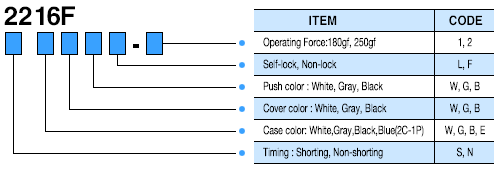

| ¡¡Order
Code Explanation |
 |

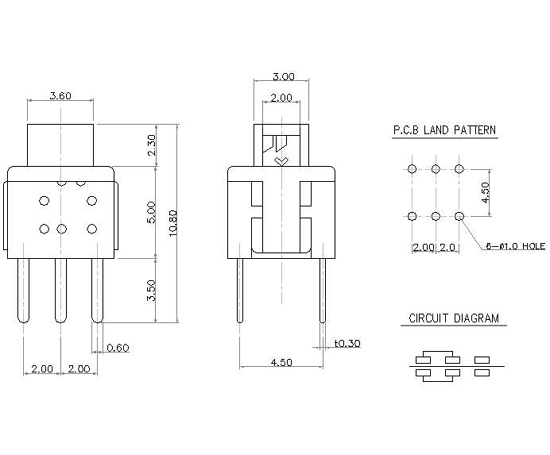

| ¡¡OUTLINE
DRAWING |
|
|
 |
|
|
|
|
|
|
