CLS-1503A
Typical Specifications
1.Rating : DC 5V 10mA
2.Output Voltage : 1V Min at 5V DC 1mA
         (Resistive Load)
3.Operating Force : Lever Portion : 70gf
          Push Portion : 200gf
4.Operating Life : 100,000 Cycles

 Features  Application
The operation function of the control unit enables center push operation

Compound operation using a sing knob is realized

Compact size and low-profile forms are available for tape and reel packaging
Communication equipment operation such as portable telephones.
Compact, portable unit such as VCR cameras, streo headphones, car radios, etc

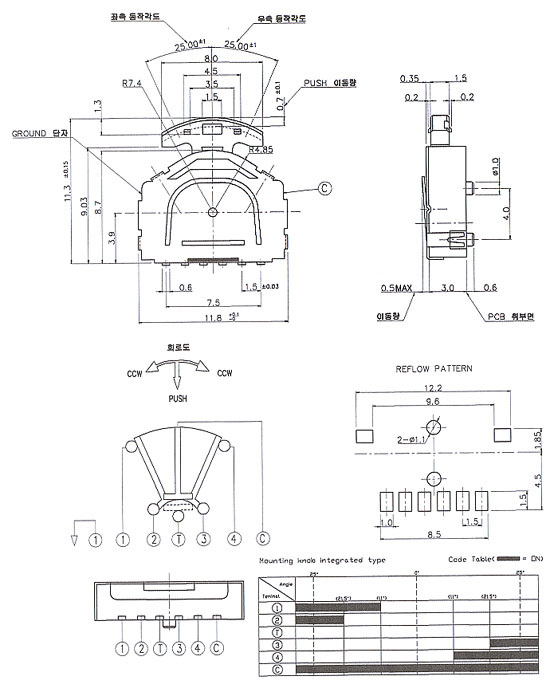

 OUTLINE DRAWING
