| CMS-1283P |
|
 |
|
| Typical
Specifications |
|
| OPERATING
CHARACTERISTICS |
| OPERATING FORCE (O.F) |
MAX. 140gf |
| RELEASE FORCE (R.F) |
MIN. 10gf |
| PRE TRAVEL (P.T) |
MAX. 0.5 |
| OVER TRAVEL (O.T) |
MIN. 0.2 |
| MOVEMENT DIFFERENTIAL (M.D) |
MAX. 0.15 |
| OPERATING POSITION (O.P) |
5.5±0.3 |
|
|
|
|

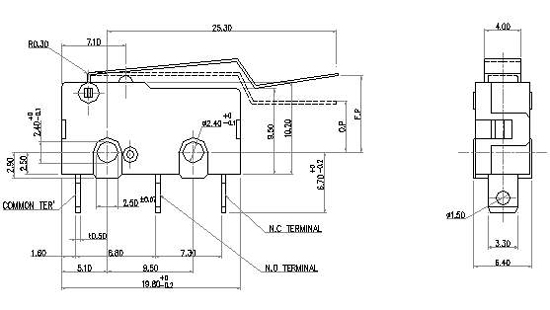

| ¡¡OUTLINE
DRAWING |
|
|
 |
|
|
|
|
|
|
